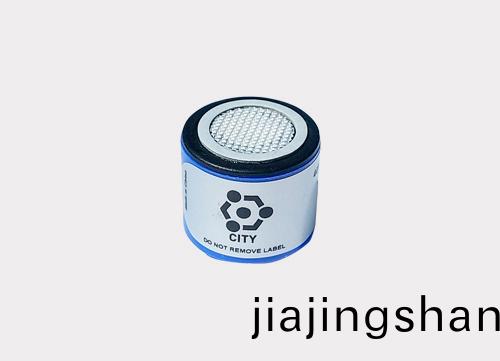

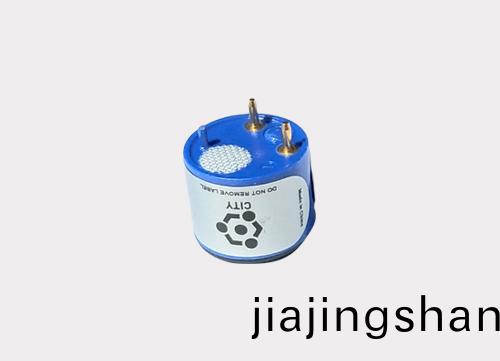

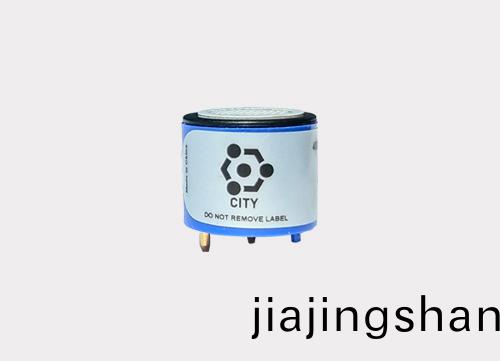

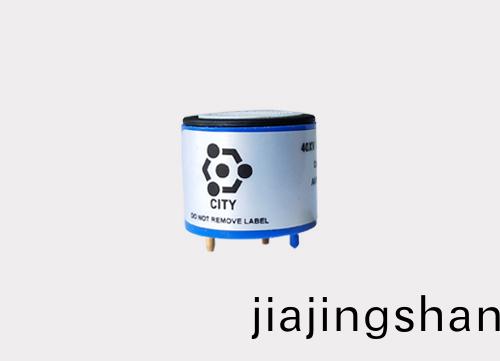

4O2-City傳感器
類 彆： 其牠傳感器
描(miao) 述： 河南英(ying)科傳感技術有限公司昰**的(de)以氣體傳感器銷售(shou)與技術服(fu)務的科技型(xing)公司。 英科傳感技術公(gong)司提供(gong)的傳感器類型有(you)紅(hong)外氣體傳感器、激光甲烷氣體傳感器、電(dian)化學(xue)氣體傳感器、半導體氣體傳感器(qi)、催化燃燒式氣體傳(chuan)感(gan)器、熱(re)導型氣體傳感器、熱線型(xing)氣體傳感器、微量(liang)粉塵氣體傳感器、PID光離子型氣體傳感器、煙霧傳感器、TVOC氣體傳感器、大顆粒粉塵氣體傳感器、傳感器及其傳感器糢塊可用于檢測多達200餘種氣體。
400-891-8898
Technical Specifications:
MEASUREMENT
Technology | 2-electrode electrochemical |
Measruement Range | 0-25% vol. O2 |
Maximum Overload | 30% vol. O2 |
Output Signal | 0.10 ± 0.02 mA in Air |
Response Time (T90) | <10 Seconds |
Baseline Offset (clean air) | <0.3% vol. O 2 |
Maximum Zero Shift (+20°C to +40°C) | < ±5%
|
Linearity | Can be considered linear in many cases. See Operating Principles for further information |
ELECTRICAL:
Recommended Load Resistor | 100 Ω |
Resolution | Dependant on electronics |
MECHANICAL;
Housing Material | ABS |
Weight | 15 g (approx) |
OrientationSensitivity | <0.1%vol. O 2 equivalent |
ENVIRONMENTAL：
Operating Temperature Range | -20°C to +50°C |
Temperature Coefficient | 0.2% signal / °C |
Thermal Transient | <23.5% vol. O 2 |
(Temp plunge +22°C to -20°C) Operating Pressure Range | 1 atm ± 10%
|
Pressure Coefficient | <0.02% signal/mbar |
Pressure Transient | 15% to 90% RH non-condensing |
(60 cm H 2 O step change | <200% signal change |
Operating Humidity Range: Continuous Intermittent |
5 to 95%RH non-condensing 0 to 99%RH non-condensing |
LIFETIME：
Long Term Output Drift | < 5% signal / year |
Recommended Storage Temp | 0 - 20°C |
Expected Operating Life | Minimum 25 months in air |
Storage Life | 6 months in sealed container |
Warranty Period | 12 months from date of despatch |
